1. 接觸性能：

良好的線簧插孔應具有低而穩定的接觸電阻。可以通過專業的電阻測試設備來檢測，接觸電阻越小，電流傳輸越穩定，信號損失越小。

接觸穩定性高，在多次插拔后仍能保持良好的接觸。例如，經過數千次插拔后，測量其接觸電阻是否有明顯變化。

2. 插拔力：

插拔力適中，既不能過松導致接觸不良，也不能過緊增加插拔難度和磨損。可以用插拔力測試儀器進行測量。

舉例來說，如果插拔力過小，插孔與插頭容易松動脫落；若插拔力過大，頻繁插拔可能會損壞插孔或插頭。

3. 材料質量：

插孔的金屬部件通常采用導電性良好且耐磨的材料，如銅合金。優質的材料能保證良好的導電性和耐久性。

絕緣部分應具有良好的絕緣性能和耐高溫特性。比如，在高溫環境下不會變形或失去絕緣能力。

4. 結構設計：

合理的結構設計能保證插孔與插頭的緊密配合，減少接觸不良的可能性。

例如，一些插孔采用了特殊的防松動結構，能有效防止插頭在使用過程中松動。

5. 制造工藝：

精良的制造工藝體現在插孔的尺寸精度、表面粗糙度等方面。尺寸精度高可保證良好的接觸，表面粗糙度低能減少磨損。

觀察插孔的外觀，無明顯的瑕疵、毛刺、劃痕等。

6. 環境適應性：

能夠在不同的環境條件下正常工作，如溫度、濕度、振動等。

可以通過模擬不同的環境條件進行測試，判斷其在惡劣環境下的性能穩定性。

7. 品牌和廠家信譽：

知名品牌和有良好口碑的廠家通常在質量控制方面更為嚴格。

參考其他用戶的評價和使用經驗也是判斷質量的一個重要依據。

總之，要綜合考慮以上多個因素，才能較為準確地判斷線簧插孔的質量好壞。

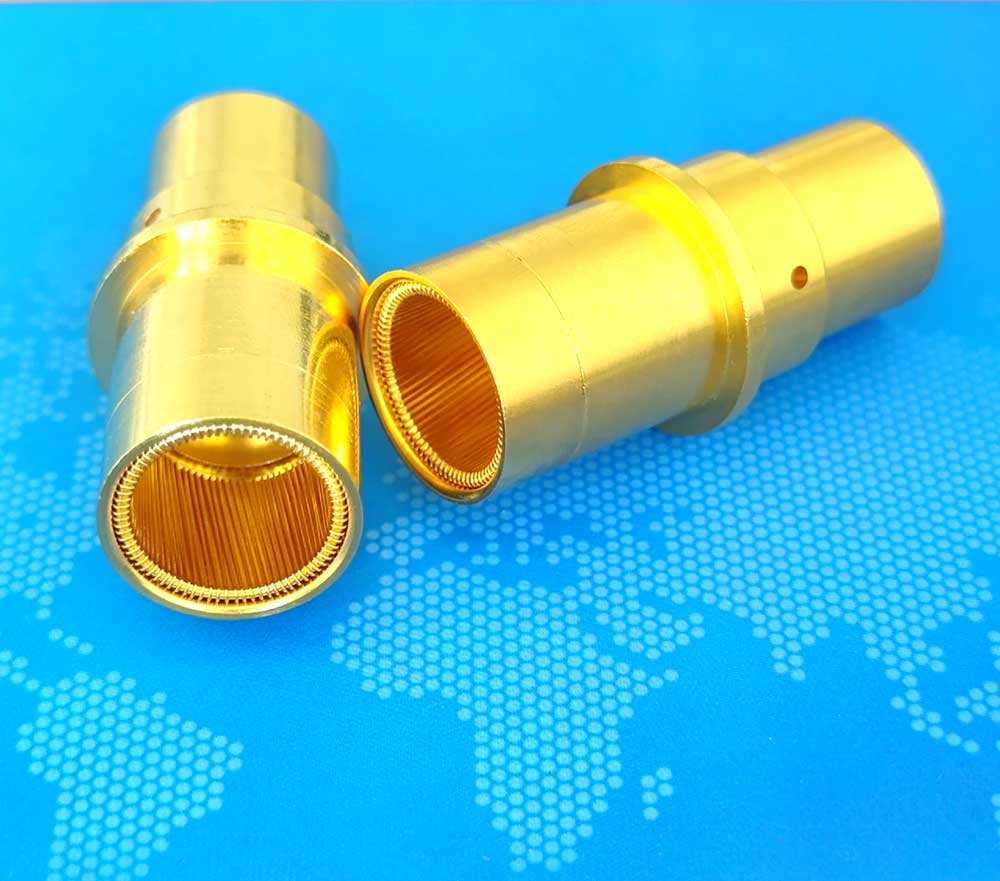

Quality Inspection of the Wire Spring Jack

1. Contact performance:

Good wire spring jack should have a low and stable contact resistance. It can be detected by professional resistance testing equipment. The smaller the contact resistance, the more stable the current transmission, and the smaller the signal loss.

High contact stability and good contact after multiple plugs. For example, after thousands of plugs and plugs, measure whether the contact resistance changes significantly.

2. Insertion and Withdrawal Force:

The insertion and pulling force is moderate, neither too loose to lead to poor contact, nor too tight to increase the difficulty of insertion and wear. It can be measured with a plugging force test instrument.

For example, if the plug and pull force is too small, the jack and plug are easy to loosen and fall off; if the plug and pull force is too large, frequent plug and pull may damage the jack or plug.

3. Material quality:

Metal parts of the jack are usually well-conductive and wear-resistant materials, such as copper alloys. High-quality materials can ensure good electrical conductivity and durability.

The insulation part shall have good insulation performance and high temperature resistance characteristics. For example, it does not deform or lose insulation at high temperatures.

4. Structural design:

Reasonable structural design can ensure the close fit of the jack and the plug, and reduce the possibility of poor contact.

For example, some jack holes use a special anti-loosening structure, which can effectively prevent the plug from becoming loose during use.

5. Manufacturing process:

Excellent manufacturing process is reflected in the jack size accuracy, surface roughness and so on aspects. High dimensional accuracy can ensure good contact, and low surface roughness can reduce wear.

Observe the appearance of the jack, no obvious defects, burrs, scratches, etc.

6. Environmental adaptability:

Ability to work normally under different environmental conditions, such as temperature, humidity, vibration, etc.

It can be tested to simulate different environmental conditions.

7.Brand and manufacturer reputation:

Well-known brands and manufacturers with a good reputation are usually more strict in quality control.

Referring to the evaluation and use experience of other users is also an important basis for judging the quality.

In summary, evaluating the quality of spring contacts involves considering multiple factors to accurately determine their performance and reliability
